Introduction of InternVL2 Series#

We are excited to announce the release of InternVL 2.0, the latest addition to the InternVL series of multimodal large language models. InternVL 2.0 features a variety of instruction-tuned models, ranging from 1 billion to 108 billion parameters.

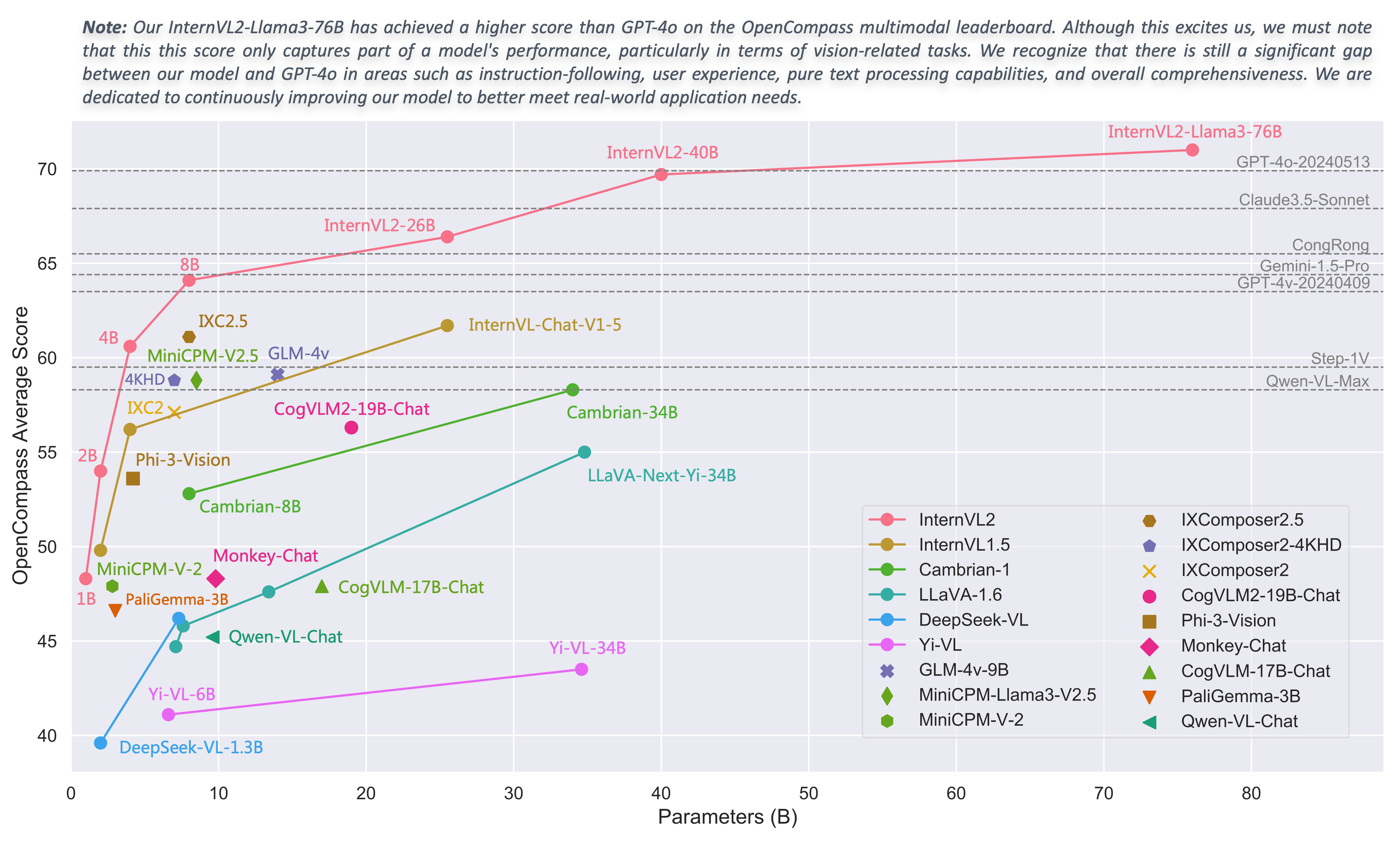

Compared to the state-of-the-art open-source multimodal large language models, InternVL 2.0 surpasses most open-source models. It demonstrates competitive performance on par with proprietary commercial models across various capabilities, including document and chart comprehension, infographics QA, scene text understanding and OCR tasks, scientific and mathematical problem solving, as well as cultural understanding and integrated multimodal capabilities.

InternVL 2.0 is trained with an 8k context window and utilizes training data consisting of long texts, multiple images, medical data, and videos, significantly improving its ability to handle these types of inputs compared to InternVL 1.5. For more details, please refer to our blog and GitHub.

As shown in this figure, InternVL2 utilizes the same architecture as InternVL 1.5, specifically the ViT-MLP-LLM configuration referenced in various existing studies. For the various sizes of the InternVL2 model, we employed different visual encoders and large language models, as detailed in the table below.

Model Name	Vision Part	Language Part	HF Link	MS Link
InternVL2‑1B	InternViT‑300M‑448px	Qwen2‑0.5B‑Instruct	🤗 link	🤖 link
InternVL2‑2B	InternViT‑300M‑448px	internlm2‑chat‑1‑8b	🤗 link	🤖 link
InternVL2‑4B	InternViT‑300M‑448px	Phi‑3‑mini‑128k‑instruct	🤗 link	🤖 link
InternVL2‑8B	InternViT‑300M‑448px	internlm2_5‑7b‑chat	🤗 link	🤖 link
InternVL2‑26B	InternViT‑6B‑448px‑V1‑5	internlm2‑chat‑20b	🤗 link	🤖 link
InternVL2‑40B	InternViT‑6B‑448px‑V1‑5	Nous‑Hermes‑2‑Yi‑34B	🤗 link	🤖 link
InternVL2-Llama3-76B	InternViT‑6B‑448px‑V1‑5	Hermes‑2‑Theta‑Llama‑3‑70B	🤗 link	🤖 link

During training, we implemented a dynamic resolution strategy, dividing images into tiles of 448 × 448 pixels in sizes ranging from 1 to 12, based on the aspect ratio and resolution of the input images. During testing, this can be zero-shot scaled up to 40 tiles (i.e., 4K resolution). To enhance scalability for high resolution, we simply employed a pixel shuffle (unshuffle) operation to reduce the number of visual tokens to one-quarter of the original. Therefore, in our model, a 448 × 448 image is represented by 256 visual tokens.

Performance#

Image Benchmarks#

Benchmark	GPT-4o-20240513	Claude3.5-Sonnet	InternVL2-40B	InternVL2-Llama3-76B
Model Size	-	-	40B	76B

DocVQA_test	92.8	95.2	93.9	94.1
ChartQA_test	85.7	90.8	86.2	88.4
InfoVQA_test	-	-	78.7	82.0
TextVQA_val	-	-	83.0	84.4
OCRBench	736	788	837	839
MME_sum	2328.7	1920.0	2315.0	2414.7
RealWorldQA	75.4	60.1	71.8	72.2
AI2D_test	94.2	94.7	87.1	87.6
MMMU_val	69.1 / 69.2	68.3 / 65.9	53.9 / 55.2	55.2 / 58.2
MMBench-EN_test	83.4	79.7	86.8	86.5
MMBench-CN_test	82.1	80.7	86.5	86.3
CCBench_dev	71.2	54.1	80.6	81.0
MMVet_GPT-4-0613	-	-	68.5	69.8
MMVet_GPT-4-Turbo	69.1	66.0	65.5	65.7
SEED-Image	77.1	-	78.2	78.2
HallBench_avg	55.0	49.9	56.9	55.2
MathVista_testmini	63.8	67.7	63.7	65.5
OpenCompass_avg	69.9	67.9	69.7	71.0

We simultaneously use InternVL and VLMEvalKit repositories for model evaluation. Specifically, the results reported for DocVQA, ChartQA, InfoVQA, TextVQA, MME, AI2D, MMBench, CCBench, MMVet, and SEED-Image were tested using the InternVL repository. OCRBench, RealWorldQA, HallBench, and MathVista were evaluated using the VLMEvalKit.
For MMMU, we report both the original scores (left side: evaluated using the InternVL codebase for InternVL series models, and sourced from technical reports or webpages for other models) and the VLMEvalKit scores (right side: collected from the OpenCompass leaderboard).
Please note that evaluating the same model using different testing toolkits like InternVL and VLMEvalKit can result in slight differences, which is normal. Updates to code versions and variations in environment and hardware can also cause minor discrepancies in results.

Video Benchmarks#

Benchmark	GPT-4o	GPT-4V	Gemini-Pro-1.5	InternVL2-40B	InternVL2-Llama3-76B
Model Size	-	-	-	40B	76B

MVBench	-	-	-	72.5	69.6
MMBench-Video_8f	1.62	1.53	1.30	1.32	1.37
MMBench-Video_16f	1.86	1.68	1.60	1.45	1.52
Video-MME w/o subs	71.9	59.9	75.0	61.2	61.2
Video-MME w subs	77.2	63.3	81.3	62.4	62.8

We evaluate our models on MVBench and Video-MME by extracting 16 frames from each video, and each frame was resized to a 448x448 image.

Grounding Benchmarks#

Model	avg.	RefCOCO (val)	RefCOCO (testA)	RefCOCO (testB)	RefCOCO+ (val)	RefCOCO+ (testA)	RefCOCO+ (testB)	RefCOCO‑g (val)	RefCOCO‑g (test)
UNINEXT-H (Specialist SOTA)	88.9	92.6	94.3	91.5	85.2	89.6	79.8	88.7	89.4

Mini-InternVL- Chat-2B-V1-5	75.8	80.7	86.7	72.9	72.5	82.3	60.8	75.6	74.9
Mini-InternVL- Chat-4B-V1-5	84.4	88.0	91.4	83.5	81.5	87.4	73.8	84.7	84.6
InternVL‑Chat‑V1‑5	88.8	91.4	93.7	87.1	87.0	92.3	80.9	88.5	89.3

InternVL2‑1B	79.9	83.6	88.7	79.8	76.0	83.6	67.7	80.2	79.9
InternVL2‑2B	77.7	82.3	88.2	75.9	73.5	82.8	63.3	77.6	78.3
InternVL2‑4B	84.4	88.5	91.2	83.9	81.2	87.2	73.8	84.6	84.6
InternVL2‑8B	82.9	87.1	91.1	80.7	79.8	87.9	71.4	82.7	82.7
InternVL2‑26B	88.5	91.2	93.3	87.4	86.8	91.0	81.2	88.5	88.6
InternVL2‑40B	90.3	93.0	94.7	89.2	88.5	92.8	83.6	90.3	90.6
InternVL2- Llama3‑76B	90.0	92.2	94.8	88.4	88.8	93.1	82.8	89.5	90.3

We use the following prompt to evaluate InternVL’s grounding ability: Please provide the bounding box coordinates of the region this sentence describes: <ref>{}</ref>

Citation#

If you find this project useful in your research, please consider citing:

@article{chen2024far,
  title={How far are we to gpt-4v? closing the gap to commercial multimodal models with open-source suites},
  author={Chen, Zhe and Wang, Weiyun and Tian, Hao and Ye, Shenglong and Gao, Zhangwei and Cui, Erfei and Tong, Wenwen and Hu, Kongzhi and Luo, Jiapeng and Ma, Zheng and others},
  journal={Science China Information Sciences},
  volume={67},
  number={12},
  pages={220101},
  year={2024},
  publisher={Springer}
}
@inproceedings{chen2024internvl,
  title={Internvl: Scaling up vision foundation models and aligning for generic visual-linguistic tasks},
  author={Chen, Zhe and Wu, Jiannan and Wang, Wenhai and Su, Weijie and Chen, Guo and Xing, Sen and Zhong, Muyan and Zhang, Qinglong and Zhu, Xizhou and Lu, Lewei and others},
  booktitle={Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition},
  pages={24185--24198},
  year={2024}
}
