Chat Data Format#

Dataset Configuration#

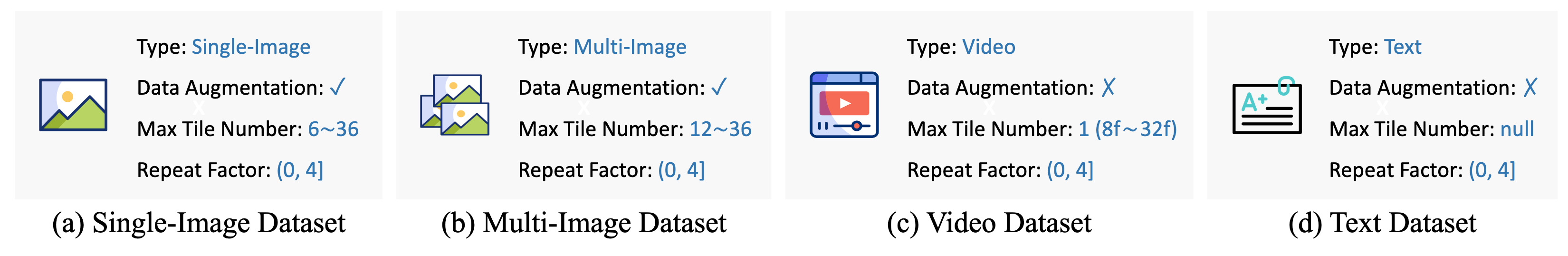

In InternVL 2.0 and 2.5, the organization of the training data is controlled by several key parameters to optimize the balance and distribution of datasets during training.

image/png

  • Data Augmentation: JPEG compression is applied conditionally: enabled for image datasets to enhance robustness and disabled for video datasets to maintain consistent frame quality.

  • Maximum Tile Number: The parameter n_max controls the maximum tiles per dataset. For example, higher values (24–36) are used for multi-image or high-resolution data, lower values (6–12) for standard images, and 1 for videos.

  • Repeat Factor: The repeat factor r adjusts dataset sampling frequency. Values below 1 reduce a dataset’s weight, while values above 1 increase it. This ensures balanced training across tasks and prevents overfitting or underfitting.

Meta File#

In this document, we will detail the organization format of our conversation data. Currently, we use a JSON file to manage the meta information of all datasets. The format is as follows:

{
  "your-custom-dataset-1": {
    "root": "path/to/the/image/",
    "annotation": "path/to/the/jsonl/annotation",
    "data_augment": false,
    "max_dynamic_patch": 12,
    "repeat_time": 1,
    "length": "number of samples in the dataset"
  },
  ...
}

Here, root is the root directory of the dataset, annotation is the path to the annotation file, data_augment indicates whether data augmentation is needed, repeat_time is the number of times the dataset is repeated, and length is the number of samples in the dataset.

For example, a file for the ShareGPT4V dataset looks like this:

{
  "sharegpt4v_instruct_gpt4-vision_cap100k": {
    "root": "playground/data/",
    "annotation": "playground/opensource/sharegpt4v_instruct_gpt4-vision_cap100k.jsonl",
    "data_augment": false,
    "max_dynamic_patch": 12,
    "repeat_time": 1,
    "length": 102025
  },
  ...
}

You can add multiple datasets in this JSON file, similar to this file.

We currently support the following four types of datasets: pure text data, single-image data, multi-image (interleaved) data, and video data. We do not require all entries in a JSONL file to be of the same type, meaning your JSONL file can contain different types of data.

Pure Text Data#

For pure text data, we use a JSONL file to store the data. Each entry is a dictionary organized in the following format. Note that entries for pure text data should not contain an image field.

{
  "id": 0,
  "conversations": [
    {"from": "human", "value": "user input"},
    {"from": "gpt", "value": "assistant output"},
    {"from": "human", "value": "user input"},
    {"from": "gpt", "value": "assistant output"}
  ]
}

Here, id is the unique identifier for the data, and conversations is a list containing multiple conversations. Each conversation is a dictionary with two key-value pairs: from and value. from indicates the speaker’s identity, and value indicates the speaker’s input.

This data format is consistent with LLaVA 1.5, with the difference being that LLaVA 1.5 uses JSON, while we use JSONL.

An example of pure text data:

{"id": 0, "conversations": [{"from": "human", "value": "Find the length of the hypotenuse given two sides\n\"side_length1 = 5, side_length2 = 6\""}, {"from": "gpt", "value": "To find the length of the hypotenuse given the two sides of a right triangle, you can use the Pythagorean theorem. The theorem states that the square of the length of the hypotenuse is equal to the sum of the squares of the lengths of the two other sides.\n \nIn this case, the length of one side is 5, and the length of the other side is 6. Plugging these values into the formula, we get:\n\nhypotenuse2 = 5^2 + 6^2\n                 = 25 + 36\n                 = 61\n\nTo get the length of the hypotenuse, take the square root of 61:\n\nhypotenuse = √61\n                 = 7.81 (rounded to two decimal places)\n\nTherefore, the length of the hypotenuse is approximately 7.81 units."}]}

Here is the more readable version:

{
  "id": 0,
  "conversations": [
    {
      "from": "human",
      "value": "Find the length of the hypotenuse given two sides\n\"side_length1 = 5, side_length2 = 6\""
    },
    {
      "from": "gpt",
      "value": "To find the length of the hypotenuse given the two sides of a right triangle, you can use the Pythagorean theorem. The theorem states that the square of the length of the hypotenuse is equal to the sum of the squares of the lengths of the two other sides.\n\nIn this case, the length of one side is 5, and the length of the other side is 6. Plugging these values into the formula, we get:\n\nhypotenuse^2 = 5^2 + 6^2\n               = 25 + 36\n               = 61\n\nTo get the length of the hypotenuse, take the square root of 61:\n\nhypotenuse = √61\n              = 7.81 (rounded to two decimal places)\n\nTherefore, the length of the hypotenuse is approximately 7.81 units."
    }
  ]
}

Single-Image Data#

For single-image data, we use a JSONL file to store the data. Each entry is a dictionary organized in the following format. Note that each entry for single-image data must contain an image field, which is a string.

The path in the image field is relative to the root field. Concatenating the root field and the image field gives the complete path to the image. It is recommended to include width and height information for each data sample for future use.

{
  "id": 0,
  "image": "path/to/image.jpg",
  "width": 111,
  "height": 222,
  "conversations": [
    {"from": "human", "value": "<image>\nuser input"},
    {"from": "gpt", "value": "assistant output"},
    {"from": "human", "value": "user input"},
    {"from": "gpt", "value": "assistant output"}
  ]
}

Here, <image> indicates the position where the image is inserted, and the number of <image> placeholders should match the number of images. In single-image data, the <image> placeholder should appear only once across all conversations.

An example of single-image data:

{"id": 0, "image": "images/00000000.jpg", "conversations": [{"from": "human", "value": "<image>\nCan you extract any readable text from the image?"}, {"from": "gpt", "value": "Dares Wins Vol. 5 Tommy's Heroes Vol. 6: For Tomorrow Vol. 7: Closing Time miniseries. Clark Kent is being interviewed about Superman's connection to notorious killer Tommy Monaghan. Taking the conversation..."}], "width": 897, "height": 1152}

Here is the more readable version:

{
  "id": 0,
  "image": "images/00000000.jpg",
  "width": 897,
  "height": 1152,
  "conversations": [
    {
      "from": "human",
      "value": "<image>\nCan you extract any readable text from the image?"
    },
    {
      "from": "gpt",
      "value": "Dares Wins Vol. 5 Tommy's Heroes Vol. 6: For Tomorrow Vol. 7: Closing Time miniseries. Clark Kent is being interviewed about Superman's connection to notorious killer Tommy Monaghan. Taking the conversation..."
    }
  ]
}

Grounding / Detection Data#

For grounding or detection data, we normalize each coordinate box to the range [0, 1000] using the width and height of the image, and round the normalized coordinates to integers:

def normalize_coordinates(box, image_width, image_height):
    x1, y1, x2, y2 = box
    normalized_box = [
        round((x1 / image_width) * 1000),
        round((y1 / image_height) * 1000),
        round((x2 / image_width) * 1000),
        round((y2 / image_height) * 1000)
    ]
    return normalized_box

We organize the model’s responses in the following format: <ref>class name</ref><box>[[x1, y1, x2, y2], ...]</box>

An example of the RefCOCO dataset:

{"id": 2324, "image": "COCO_train2014_000000581857.jpg", "width": 427, "height": 640, "conversations": [{"from": "human", "value": "<image>\nPlease provide the bounding box coordinate of the region this sentence describes: <ref>the lady with the blue shirt</ref>"}, {"from": "gpt", "value": "<ref>the lady with the blue shirt</ref><box>[[243, 469, 558, 746]]</box>"}, {"from": "human", "value": "Please provide the bounding box coordinate of the region this sentence describes: <ref>woman in gray shirt facing camera on right</ref>"}, {"from": "gpt", "value": "<ref>woman in gray shirt facing camera on right</ref><box>[[507, 409, 698, 740]]</box>"}, {"from": "human", "value": "Please provide the bounding box coordinate of the region this sentence describes: <ref>a woman in glasses shops in an open air fruit market</ref>"}, {"from": "gpt", "value": "<ref>a woman in glasses shops in an open air fruit market</ref><box>[[196, 422, 395, 708]]</box>"}]}

Here is the more readable version:

{
  "id": 2324,
  "image": "COCO_train2014_000000581857.jpg",
  "width": 427,
  "height": 640,
  "conversations": [
    {
      "from": "human",
      "value": "<image>\nPlease provide the bounding box coordinate of the region this sentence describes: <ref>the lady with the blue shirt</ref>"
    },
    {
      "from": "gpt",
      "value": "<ref>the lady with the blue shirt</ref><box>[[243, 469, 558, 746]]</box>"
    },
    {
      "from": "human",
      "value": "Please provide the bounding box coordinate of the region this sentence describes: <ref>woman in gray shirt facing camera on right</ref>"
    },
    {
      "from": "gpt",
      "value": "<ref>woman in gray shirt facing camera on right</ref><box>[[507, 409, 698, 740]]</box>"
    },
    {
      "from": "human",
      "value": "Please provide the bounding box coordinate of the region this sentence describes: <ref>a woman in glasses shops in an open air fruit market</ref>"
    },
    {
      "from": "gpt",
      "value": "<ref>a woman in glasses shops in an open air fruit market</ref><box>[[196, 422, 395, 708]]</box>"
    }
  ]
}

An example of the V3Det dataset:

{"id": 78281, "image": "images/x00001541/000106464.jpg", "width": 800, "height": 800, "conversations": [{"from": "human", "value": "<image>\nPlease detect and label all objects in the following image and mark their positions."}, {"from": "gpt", "value": "Sure, I will detect and label all objects in the image and mark their positions.\n\n```\n<ref>Bulletproof Helmet</ref><box>[[1, 2, 269, 235]]</box>\n<ref>Bulletproof Clothing</ref><box>[[650, 619, 990, 993]]</box>\n<ref>Gun Model</ref><box>[[32, 231, 977, 662]]</box>\n<ref>screw</ref><box>[[754, 376, 851, 429]]</box>\n<ref>handcuff</ref><box>[[698, 228, 931, 386]]</box>\n<ref>95 Type Assault Rifle</ref><box>[[39, 229, 983, 667]]</box>\n<ref>shield</ref><box>[[30, 597, 273, 993]]</box>\n<ref>telescope</ref><box>[[666, 38, 890, 217]]</box>\n<ref>Wireless Walkie-Talkie</ref><box>[[295, 2, 370, 226], [374, 0, 447, 226]]</box>\n<ref>bomb</ref><box>[[473, 61, 552, 181], [569, 61, 648, 183]]</box>\n<ref>weapon</ref><box>[[302, 617, 342, 993]]</box>\n<ref>vessel</ref><box>[[355, 653, 644, 991]]</box>\n<ref>artifact</ref><box>[[915, 0, 981, 294]]</box>\n```\n"}]}

Here is the more readable version:

{
  "id": 78281,
  "image": "images/x00001541/000106464.jpg",
  "width": 800,
  "height": 800,
  "conversations": [
    {
      "from": "human",
      "value": "<image>\nPlease detect and label all objects in the following image and mark their positions."
    },
    {
      "from": "gpt",
      "value": "Sure, I will detect and label all objects in the image and mark their positions.\n\n<ref>Bulletproof Helmet</ref><box>[[1, 2, 269, 235]]</box>\n<ref>Bulletproof Clothing</ref><box>[[650, 619, 990, 993]]</box>\n<ref>Gun Model</ref><box>[[32, 231, 977, 662]]</box>\n<ref>screw</ref><box>[[754, 376, 851, 429]]</box>\n<ref>handcuff</ref><box>[[698, 228, 931, 386]]</box>\n<ref>95 Type Assault Rifle</ref><box>[[39, 229, 983, 667]]</box>\n<ref>shield</ref><box>[[30, 597, 273, 993]]</box>\n<ref>telescope</ref><box>[[666, 38, 890, 217]]</box>\n<ref>Wireless Walkie-Talkie</ref><box>[[295, 2, 370, 226], [374, 0, 447, 226]]</box>\n<ref>bomb</ref><box>[[473, 61, 552, 181], [569, 61, 648, 183]]</box>\n<ref>weapon</ref><box>[[302, 617, 342, 993]]</box>\n<ref>vessel</ref><box>[[355, 653, 644, 991]]</box>\n<ref>artifact</ref><box>[[915, 0, 981, 294]]</box>\n"
    }
  ]
}

Multi-Image Data#

For multi-image data, we use a JSONL file to store the data. Each entry is a dictionary organized in the following format. Note that each entry for multi-image data must contain an image field, which is a list of strings.

Each element in the list is a path relative to the root field. Concatenating the root field and each element gives the complete path to the images. It is recommended to include width_list and height_list information for each data sample for future use.

{
  "id": 0,
  "image": ["path/to/image1.jpg", "path/to/image2.jpg", "path/to/image3.jpg"],
  "width_list": [111, 222, 333],
  "height_list": [111, 222, 333],
  "conversations": [
    {"from": "human", "value": "<image>\nuser input <image>\nuser input"},
    {"from": "gpt", "value": "assistant output"},
    {"from": "human", "value": "<image>\nuser input"},
    {"from": "gpt", "value": "assistant output"}
  ]
}

Here, <image> indicates the position where the images are inserted, and the number of <image> placeholders should match the number of images. In this example, the image field list contains three elements, so the <image> placeholder also needs to appear three times.

An example of multi-image data:

{"id": 0, "image": ["cimages/multimages/16/5pc.png", "cimages/multimages/16/5pd.png", "cimages/multimages/16/1602207874_p5b.png", "cimages/multimages/16/5pe.png", "cimages/multimages/16/1473016381_p5a.png"], "height_list": [23, 22, 23, 41, 52], "width_list": [240, 240, 240, 240, 240], "conversations": [{"from": "human", "value": "Let F = {2, 5, 7, 9}\n\nLet G = {1, 4, 6, 8}\n\nWhich of the following is true?\nA. \n<image>\n\nB. /\n<image>\n\nC. /\n<image>\n\nD. /\n<image>\n\nE. /\n<image>\n\nAnswer with the option's letter from the given choices directly."}, {"from": "gpt", "value": "A"}]}

Here is the more readable version:

{
  "id": 0,
  "image": [
    "cimages/multimages/16/5pc.png",
    "cimages/multimages/16/5pd.png",
    "cimages/multimages/16/1602207874_p5b.png",
    "cimages/multimages/16/5pe.png",
    "cimages/multimages/16/1473016381_p5a.png"
  ],
  "height_list": [23, 22, 23, 41, 52],
  "width_list": [240, 240, 240, 240, 240],
  "conversations": [
    {
      "from": "human",
      "value": "Let F = {2, 5, 7, 9}\n\nLet G = {1, 4, 6, 8}\n\nWhich of the following is true?\nA. \n<image>\n\nB. /\n<image>\n\nC. /\n<image>\n\nD. /\n<image>\n\nE. /\n<image>\n\nAnswer with the option's letter from the given choices directly."
    },
    {
      "from": "gpt",
      "value": "A"
    }
  ]
}

Video Data#

For video data, we use a JSONL file to store the data. Each entry is a dictionary organized in the following format. Note that each entry for video data must contain a video field, which is a string.

The path in the video field is relative to the root field. Concatenating the root field and the video field gives the complete path to the video.

{
  "id": 0,
  "video": "path/to/video.mp4",
  "conversations": [
    {"from": "human", "value": "<video>\nuser input"},
    {"from": "gpt", "value": "assistant output"},
    {"from": "human", "value": "user input"},
    {"from": "gpt", "value": "assistant output"}
  ]
}

Here, <video> indicates the position where the video is inserted, and the number of <video> placeholders should match the number of videos. In video data, the <video> placeholder should appear only once across all conversations.

An example of video data:

{"id": 0, "video": "000001_000050/1066682446.mp4", "conversations": [{"from": "human", "value": "<video>\nWrite an exhaustive depiction of the given video, capturing its essence and key moments."}, {"from": "gpt", "value": "First, the video shows a black clock with black numbers and a white background on the side of a building. Next, the numbers show the time. Then, the clock is shown in black and white, but the numbers still show the time. The clock now displays the time as 830. Finally, a black clock with numbers is on the side of a tower, displaying the date as January 28. Overall, the video is a 3D animation of a flip clock calendar for the date of January 28, showing the different stages of the clock's display as it flips through the time and date."}]}

Here is the more readable version:

{
  "id": 0,
  "video": "000001_000050/1066682446.mp4",
  "conversations": [
    {
      "from": "human",
      "value": "<video>\nWrite an exhaustive depiction of the given video, capturing its essence and key moments."
    },
    {
      "from": "gpt",
      "value": "First, the video shows a black clock with black numbers and a white background on the side of a building. Next, the numbers show the time. Then, the clock is shown in black and white, but the numbers still show the time. The clock now displays the time as 8:30. Finally, a black clock with numbers is on the side of a tower, displaying the date as January 28. Overall, the video is a 3D animation of a flip clock calendar for the date of January 28, showing the different stages of the clock's display as it flips through the time and date."
    }
  ]
}

We currently do not support datasets that interleave video, image, and text or datasets with multiple videos. Support for such datasets may be added in the future if there is a need.
